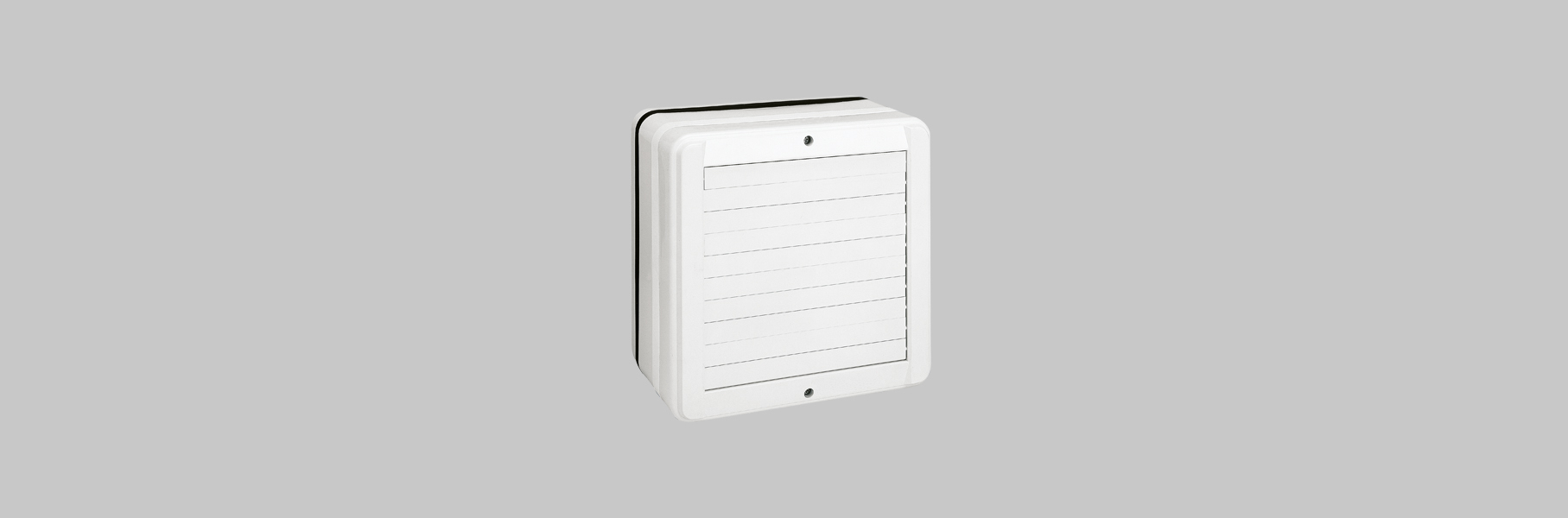

VENTIL E VENTIMATICAxial fan glass mounting

FEATURES

  • Axial fans to extract air directly outside.
  • Glass or panel mounting up to 10 mm.
  • Slow and quiet motion of shutter (Ventimatic).
  • Manual opening through Pull Cord (Ventil).
  • Rain proof external grille.
  • Double insulated product, without ground wire for fast connection.
  • Optional kit for double glass installation.
  • Careful selection of materials: grilles in white ABS and body in polystyrene.
  • Ventil and Ventimatic series supplied with anti-vibration gasket.
  • IPX4 protected (EN 60529).
  • In accordance with Standard EN 60335-2-80.

POSITIONING

  • Glass mounting

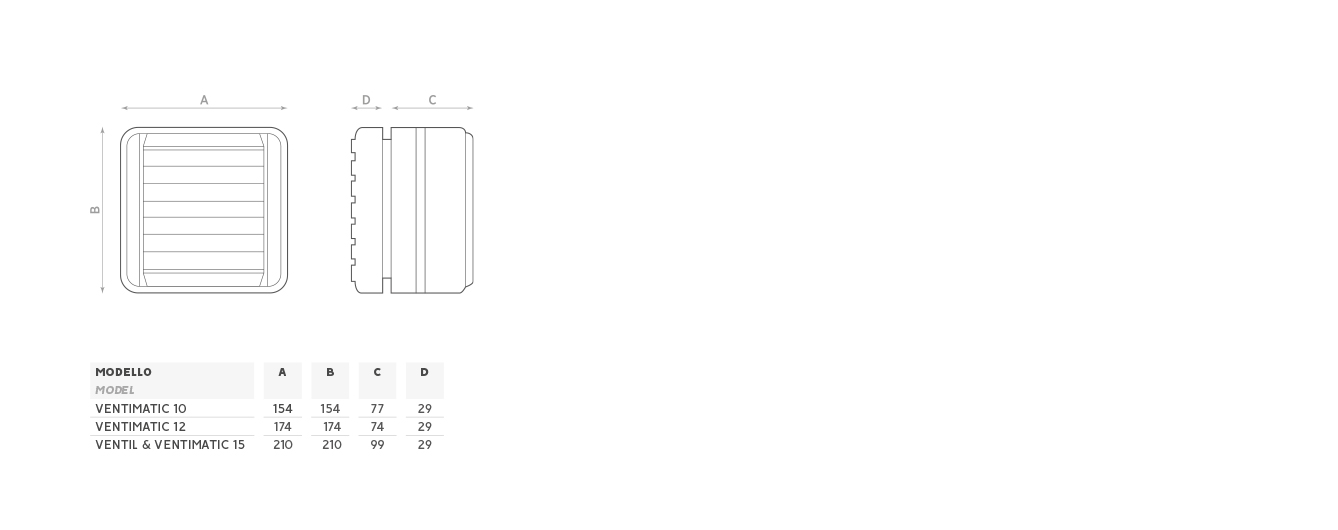

DIMENSIONS

Product versions

Slide the table to the right

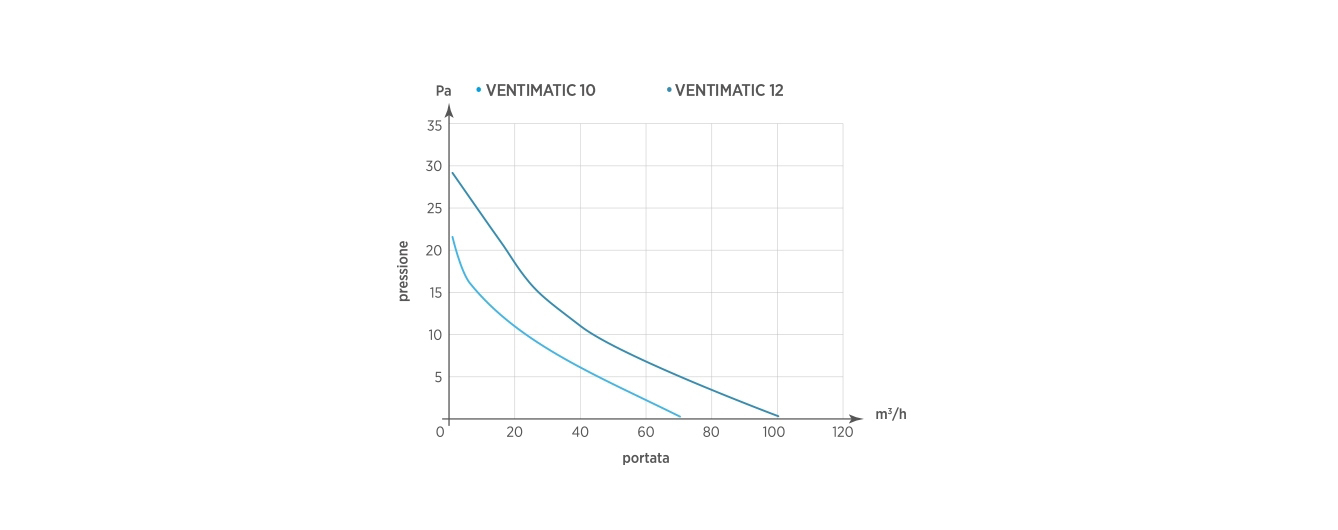

Model Code Ø hole (mm) Voltage (V) Frequency (Hz) Flow rate (m³/h) Max. Press. (mm H₂O) Max. Press. (Pa) Power (W) Noisiness dB(A)3m Weight (Kg)
Model Code Ø hole (mm) Voltage (V) Frequency (Hz) Flow rate (m³/h) Max. Press. (mm H₂O) Max. Press. (Pa) Power (W) Noisiness dB(A)3m Weight (Kg)
VENTIL 10 0084000 135 - 145 220 - 240 50 70 2,2 22 13 33 0,9
VENTIL 12 0084100 155 - 165 220 - 240 50 100 3 29 13 34 1
VENTIL 15 0084200 186 - 195 220 - 240 50 155 4 39 29 42 1,6
VENTILMATIC 10 0011000 135 - 145 220 - 240 50 70 2,2 22 16 33 0,9
VENTILMATIC 12 0011100 155- 165 220 - 240 50 100 3 29 16 34 1
VENTILMATIC 15 0011200 186 - 195 220 - 240 50 155 4 39 29 42 1,6

Further information about the product
