COMPACTCentrifugal fan

FEATURES

  • Centrifugal fans to extract air directly outside or through ducting
  • Suitable for wall/ceiling mounting even through ducts in awkward places thanks to the position of the outlet hole in the corner
  • Backdraught shutter to prevent ingress of air and foul odours
  • Simple to remove the washable filter
  • For ducts Ø100-120mm
  • Base, Timer, HT, Sensor (Compact 100) model options
  • Double insulated product, without ground wire for fast connection
  • Elastomer gasket suitable for uneven surfaces for trouble free installation
  • Adjustable speed through RGE or RG 5 controllers (base version only)
  • IPX4 protected (EN 60529)
  • In accordance with Standard EN 60335-2-80

POSITIONING

  • Wall mounting
  • Duct mounting
  • Ceiling mounting

FURTHER INFORMATION

  • In materiale ABS.
  • Timer version: Turn-off delay adjustable from 2 to 25 minutes.
  • HT version: The fan automatically starts when the humidity in the room is higher than the preset value, adjustable from 40% to 90%.
  • Sensor version: The fan automatically starts when the sensor detects a presence in the room. When the room is vacated the fan will continue to run according to the preset value on timer.
  • Made of ABS material.
  • The reduced size of the exit spigot allows to install the unit into ducting with curves placed immediately behind the exit hole.

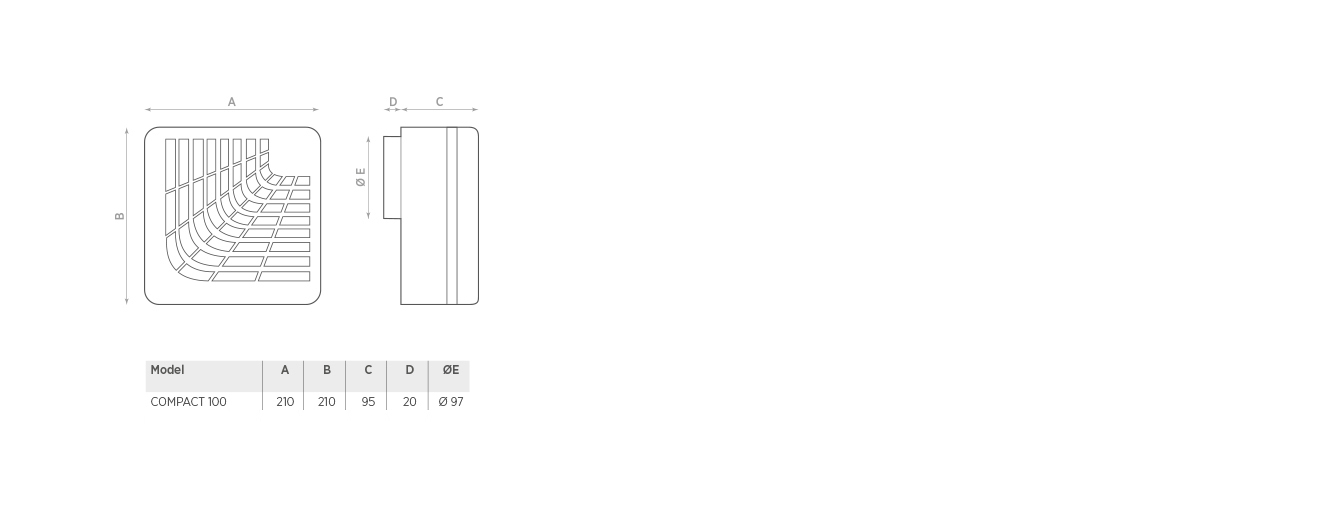

DIMENSIONS

Product versions

Slide the table to the right

Model Code Ø hole (mm) Voltage (V) Frequency (Hz) Flow rate (m³/h) Max. Press. (mm H₂O) Max. Press. (Pa) Power (W) Noisiness dB(A)3m Weight (Kg)
Model Code Ø hole (mm) Voltage (V) Frequency (Hz) Flow rate (m³/h) Max. Press. (mm H₂O) Max. Press. (Pa) Power (W) Noisiness dB(A)3m Weight (Kg)
COMPACT 100 0085000 100 - 120 220 - 240 50 85 12,5 123 28 40 1,3
COMPACT 100 T 0085100 100 - 120 220 - 240 50 85 12,5 123 28 40 1,3
COMPACT 100 HT 0093600 100 - 120 220 - 240 50 85 12,5 123 28 40 1,3
COMPACT 100 Sensor 0012300 100 - 120 220 - 240 50 85 12,5 123 28 40 1,3
COMPACT 200 0085200 100 - 120 220 - 240 50 160 20 196 45 45 1,8
COMPACT 200 T 0085200 100 - 120 220 - 240 50 160 20 196 45 45 1,8
COMPACT 200 HT 0093900 100 - 120 220 - 240 50 160 20 196 45 45 1,8
COMPACT 300 0085400 100 - 120 220 - 240 50 250 40 392 95 54 2,3
COMPACT 300 T 0094500 100 - 120 220 - 240 50 250 40 392 95 54 2,3
COMPACT 300 HT 0094200 100 - 120 220 - 240 50 250 40 392 95 54 2,3
