CS EX-ATEXExplosion proof fans EX-ATEX

FEATURES

  • Explosion Proof Certified Centrifugal fans to extract air and fumes through medium/long sized ducts in compliance with ATEX Directive 84/9/EEC effective from July 1st 2003 in EU.
  • Idonei per ambito industriale in presenza di gas,vapori e nebbie infiammabili. Omologato con certificato CESI n° 03 ATEX 250.
  • Suitable for applications in commercial and industrial environments where the risk of explosion is high and where the surrounding atmosphere contains gas, vapours or highly inflammable steam.
  • The whole product and not just the electrical parts, has been certified by CESI institute with CESI n°03 ATEX 250 certificate.
  • Fan group II, cat. 2 for gases, construction safety C, max surface temp. T3 (200°C).
  • Classified for zones 1 and 2.
  • This approval has required specific safety tests and proper examinations on products to verify how the adopted solutions have satisfied the essential Directive requirements.
  • Steel plated frame protected by an epoxy-based anticorrosive paint and aluminium centrifugal impeller statically and dynamically balanced.
  • Ball bearing class F insulation motor IP55 protected.
  • Max temperature of extracted air: 60°C.
  • Models CS 350, 360, 370 and 380: mounted on rigid base support to make installation easier.
  • Standard product supplied with impeller housing position CCW 270, different positions available on request.
  • Reference Standards: EN 13463-1: EN 13463-5; EN 14986.

POSITIONING

  • Wall mounting

ENVIROMENTS APPLICATION

Suitable for Industrial, civil and commercial application where the risk of explosion is high.

  • Shops.
  • Workshops.
  • Sport facilities.
  • Supermarkets and shopping centers.
  • Warehouse.
  • Factories.
  • Machinery.

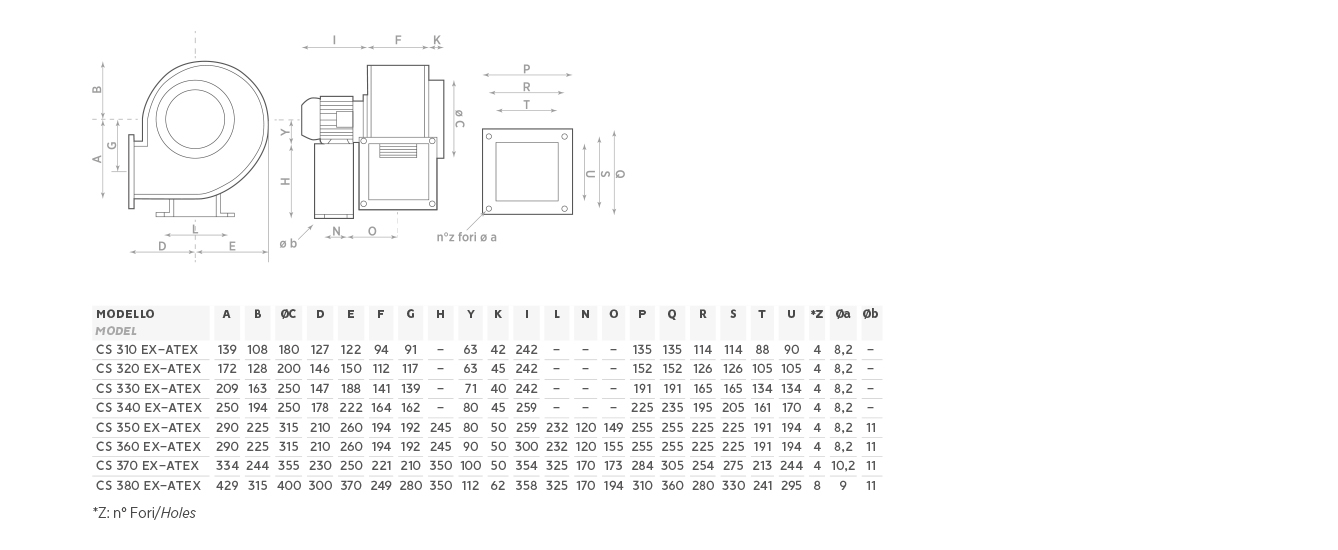

DIMENSIONS

Product versions

Slide the table to the right

Model Code Voltage (V) Frequency (Hz) Flow rate (m³/h) Max. Press. (mm H₂O) Max. Press. (Pa) Power (W) Revolutions per minute (RPM) Weight (Kg) Marking Motor N° poles Nom. Current (A) 230 V Nom. Current (A) 400 V Noisiness(A)2m IP motor protection
Model Code Voltage (V) Frequency (Hz) Flow rate (m³/h) Max. Press. (mm H₂O) Max. Press. (Pa) Power (W) Revolutions per minute (RPM) Weight (Kg) Marking Motor N° poles Nom. Current (A) 230 V Nom. Current (A) 400 V Noisiness(A)2m IP motor protection
CS 310 4M Ex-ATEX 0032500 230 50 500 16 157 200 1400 13 II 2G c T4 Single phase 4 1 0 64 IP55
CS 320 4M Ex-ATEX 0032700 230 50 720 21 206 250 1400 14 II 2G c T4 Single phase 4 1,5 0 67 IP55
CS 310 4T Ex-ATEX 0032600 230/400 50 500 16 157 200 1400 13 II 2G c T4 Three phase 4 1 0,59 64 IP55
CS 320 4T Ex-ATEX 0032800 230/400 50 720 21 206 250 1400 14 II 2G c T4 Three phase 4 1,75 1 67 IP55
CS 330 4T Ex-ATEX 0032900 230/400 50 1500 38 373 400 1400 21 II 2G c T4 Three phase 4 1,9 1,1 70 IP55
CS 340 4T Ex-ATEX 0032100 230/400 50 1900 47 461 1000 1400 31 II 2G c T4 Three phase 4 3,5 2 73 IP55
CS 350 4T Ex-ATEX 0033000 230/400 50 2900 50 490 1400 1400 37 II 2G c T4 Three phase 4 4 2,31 76 IP55
CS 360 4T Ex-ATEX 0032200 230/400 50 4100 60 589 1900 1400 44 II 2G c T4 Three phase 4 5,7 3,3 80 IP55
CS 370 4T Ex-ATEX 0033100 230/400 50 5600 73 716 2500 1400 67 II 2G c T4 Three phase 4 8,7 5 84 IP55
CS 380 4T Ex-ATEX 0033800 230/400 50 9100 105 1030 4500 1400 91 II 2G c T4 Three phase 4 15,6 9 88 IP55
