EB EX-ATEXExplosion proof fans EX-ATEX
FEATURES

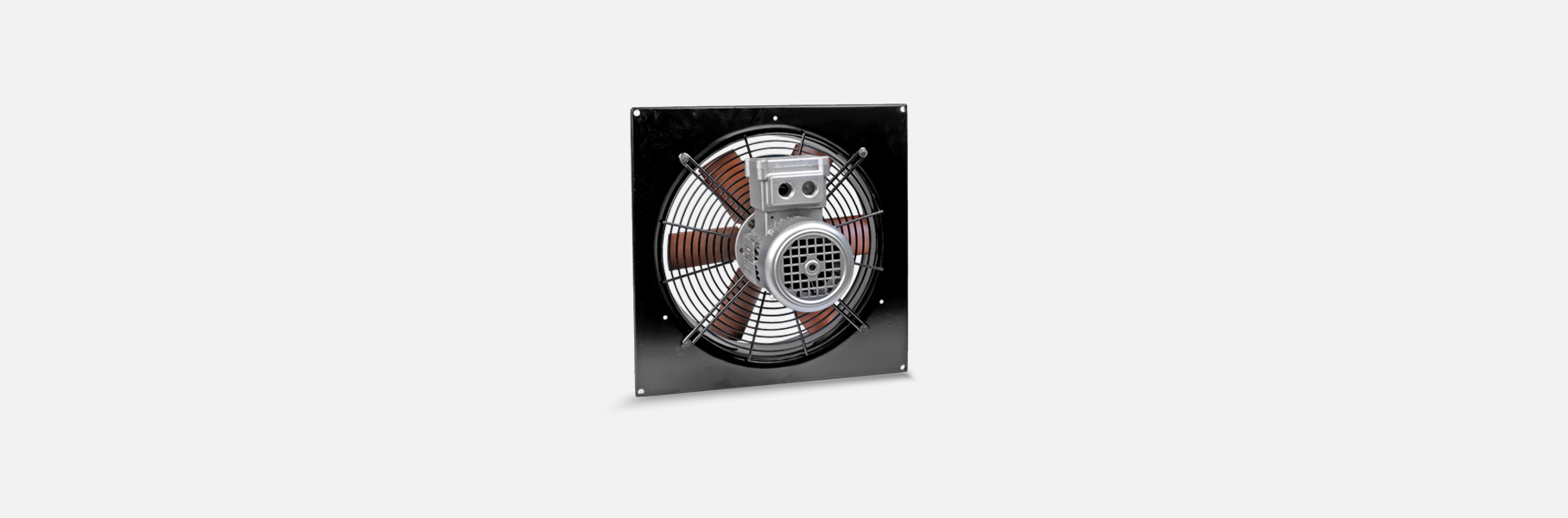

- Explosion Proof Certified Axial fans to extract air and fumes directly outside through short ducting, wall or panel mounting, in compliance with ATEX Directive 2014/34/UE.
- Suitable for applications in commercial and industrial environments where the risk of explosion is high and where the surrounding atmosphere contains gas, vapours or highly inflammable steam.
- The whole product and not just the electrical parts, has been certified by CESI Institute with CESI n°3 ATEX 251 certificate.
- Fan group II, cat. 2 for gases, construction safety Ex h, devide protection level (EPL) Gb, max surface temp. T4 (135°C) available on demand T5 and/or T6.
- Classified for zones 1 and 2.
- This approval has required specific safety tests and proper examinations on products to verify how the adopted solutions have satisfied the essential Directive requirements.
- Steel plated body protected by an epoxy-based anticorrosive paint.
- Impeller made of VO reinforced conductive nylon.
- Exd IIC T4, ball bearing class F insulation motor IP55 protected.
- Max temperature of extracted air: 40°C.
- Reversibility: all models.
- Reference Standards: EN 80079-36; EN 80079-37; EN 14986.
POSITIONING
- Wall mounting
ACCESSORIES (SUITABLE FOR INSTALLATION OUTSIDE OF THE EX ATEX AREA):
- Controllers.
ENVIROMENTS APPLICATION
Suitable for Industrial, civil and commercial application where the risk of explosion is high.
- Shops.
- Workshops.
- Sport facilities.
- Supermarkets and shopping centers.
- Warehouse.
- Factories.
- Machinery.
DIMENSIONS
Product versions
Slide the table to the right
| Model | Code | Voltage (V) | Frequency (Hz) | Flow rate (m³/h) | Max. Press. (mm H₂O) | Max. Press. (Pa) | Power (W) | Revolutions per minute (RPM) | Weight (Kg) | Marking | Motor | N° poles | Nom. Current (A) 230 V | Nom. Current (A) 400 V | Noisiness(A)2m | IP motor protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Code | Voltage (V) | Frequency (Hz) | Flow rate (m³/h) | Max. Press. (mm H₂O) | Max. Press. (Pa) | Power (W) | Revolutions per minute (RPM) | Weight (Kg) | Marking | Motor | N° poles | Nom. Current (A) 230 V | Nom. Current (A) 400 V | Noisiness(A)2m | IP motor protection |

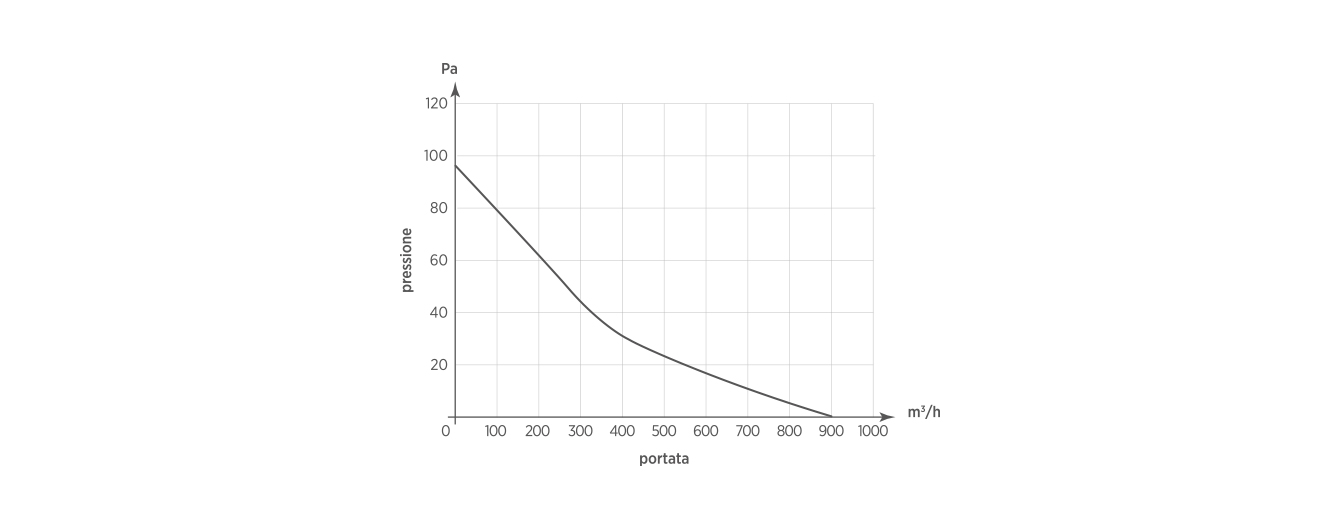

| EB 25 4M Ex-ATEX | 0035400 | 230 | 50 | 900 | 10 | 98 | 120 | 1460 | 6,8 | II 2G Ex h T4 | Single phase | 4 | 0,7 | 0 | 55 | IP55 |

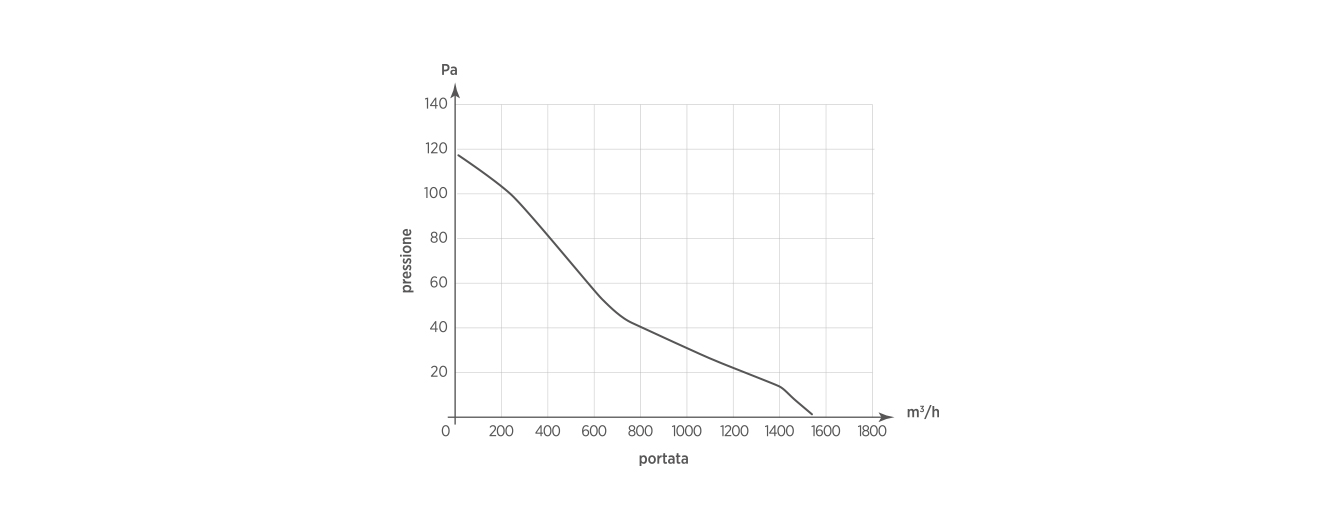

| EB 30 4M Ex-ATEX | 0035500 | 230 | 50 | 1500 | 12 | 118 | 140 | 1400 | 7,2 | II 2G Ex h T4 | Single phase | 4 | 0,75 | 0 | 59 | IP55 |

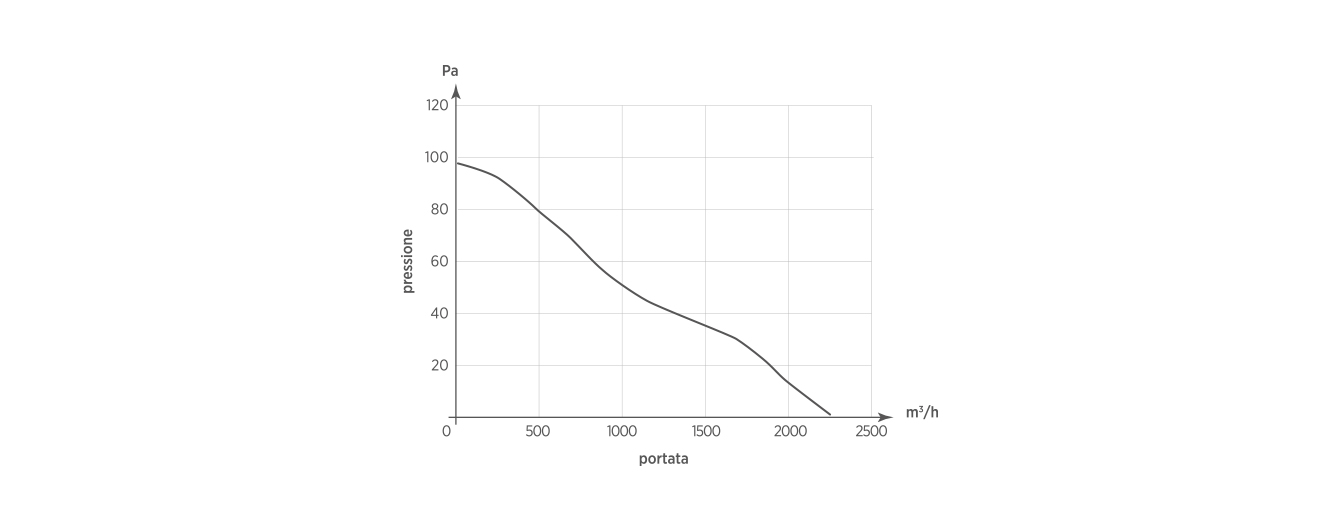

| EB 35 4M Ex-ATEX | 0035600 | 230 | 50 | 2250 | 10 | 98 | 160 | 1350 | 8,4 | II 2G Ex h T4 | Single phase | 4 | 0,8 | 0 | 62 | IP55 |
| EB 40 4M Ex-ATEX | 0035000 | 230 | 50 | 2900 | 9 | 88 | 180 | 1290 | 9 | II 2G Ex h T4 | Single phase | 4 | 0,85 | 0 | 65 | IP55 |

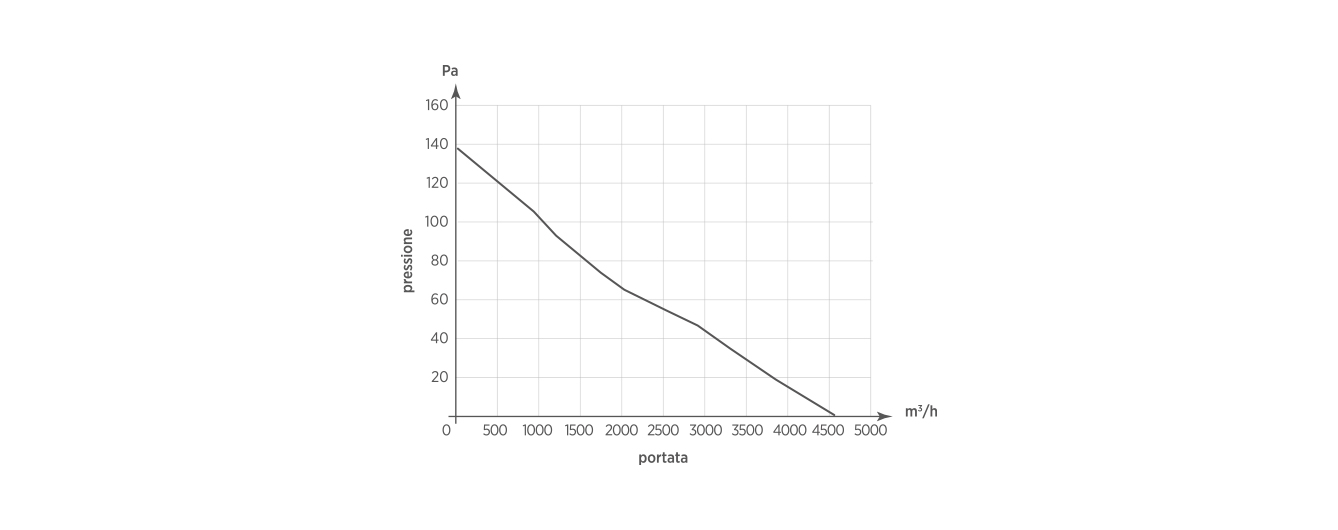

| EB 50 4M Ex-ATEX | 0035100 | 230 | 50 | 4500 | 14 | 137 | 210 | 1200 | 11,2 | II 2G Ex h T4 | Single phase | 4 | 1 | 0 | 70 | IP55 |
| EB 25 4T Ex-ATEX | 0035700 | 230/400 | 50 | 900 | 10 | 98 | 100 | 1460 | 6,8 | II 2G Ex h T4 | Three phase | 4 | 0,67 | 0,39 | 55 | IP55 |
| EB 30 4T Ex-ATEX | 0035900 | 230/400 | 50 | 1500 | 12 | 118 | 125 | 1430 | 7,2 | II 2G Ex h T4 | Three phase | 4 | 0,69 | 0,4 | 59 | IP55 |
| EB 35 4T Ex-ATEX | 0036000 | 230/400 | 50 | 2250 | 10 | 98 | 150 | 1400 | 8,4 | II 2G Ex h T4 | Three phase | 4 | 0,72 | 0,42 | 63 | IP55 |
| EB 40 4T Ex-ATEX | 0036100 | 230/400 | 50 | 2900 | 9 | 88 | 180 | 1350 | 9 | II 2G Ex h T4 | Three phase | 4 | 0,74 | 0,43 | 66 | IP55 |
| EB 50 4T Ex-ATEX | 0036200 | 230/400 | 50 | 4500 | 14 | 137 | 230 | 1270 | 11,2 | II 2G Ex h T4 | Three phase | 4 | 0,78 | 0,45 | 72 | IP55 |
