GHOST-UDecentralized heat recovery unit
FEATURES
- Motor housing placed inside the wall behind the heat exchanger to make the product highly silent (only Ø160);
- High efficiency heat exchanger (up to 93%) made of ceramic material;

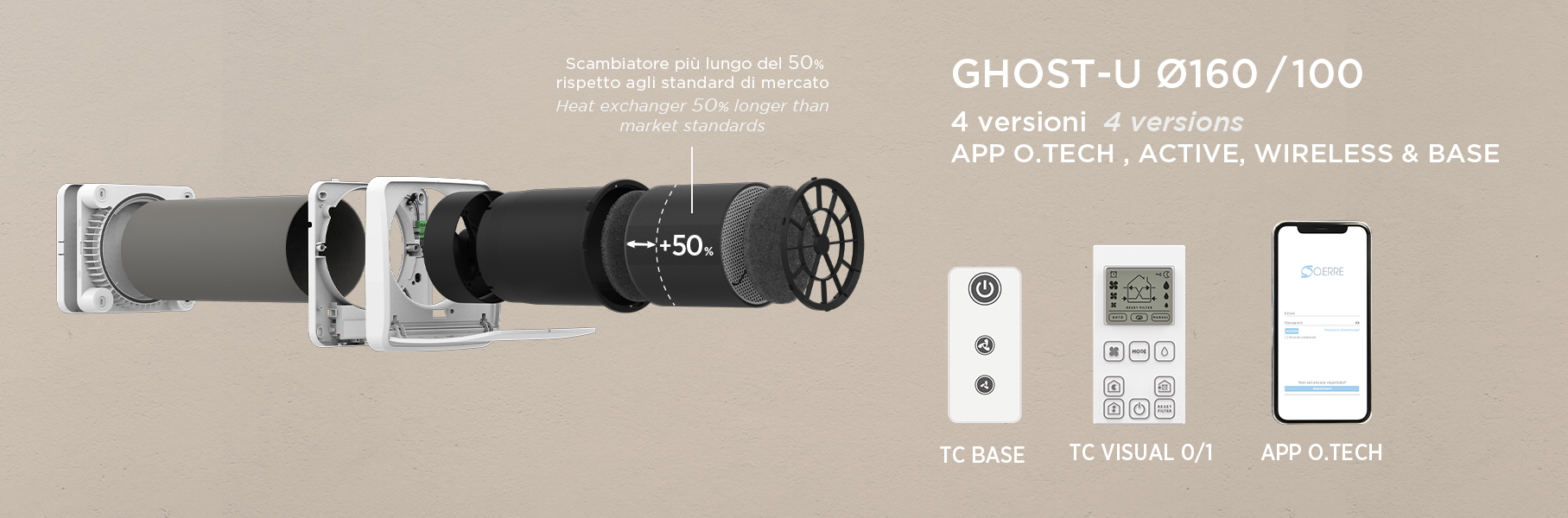

- The heat exchanger is 50% longer than market standards (150 mm instead of 100 mm), ensuring a 5% increase in average thermal efficiency (Ø160 only).

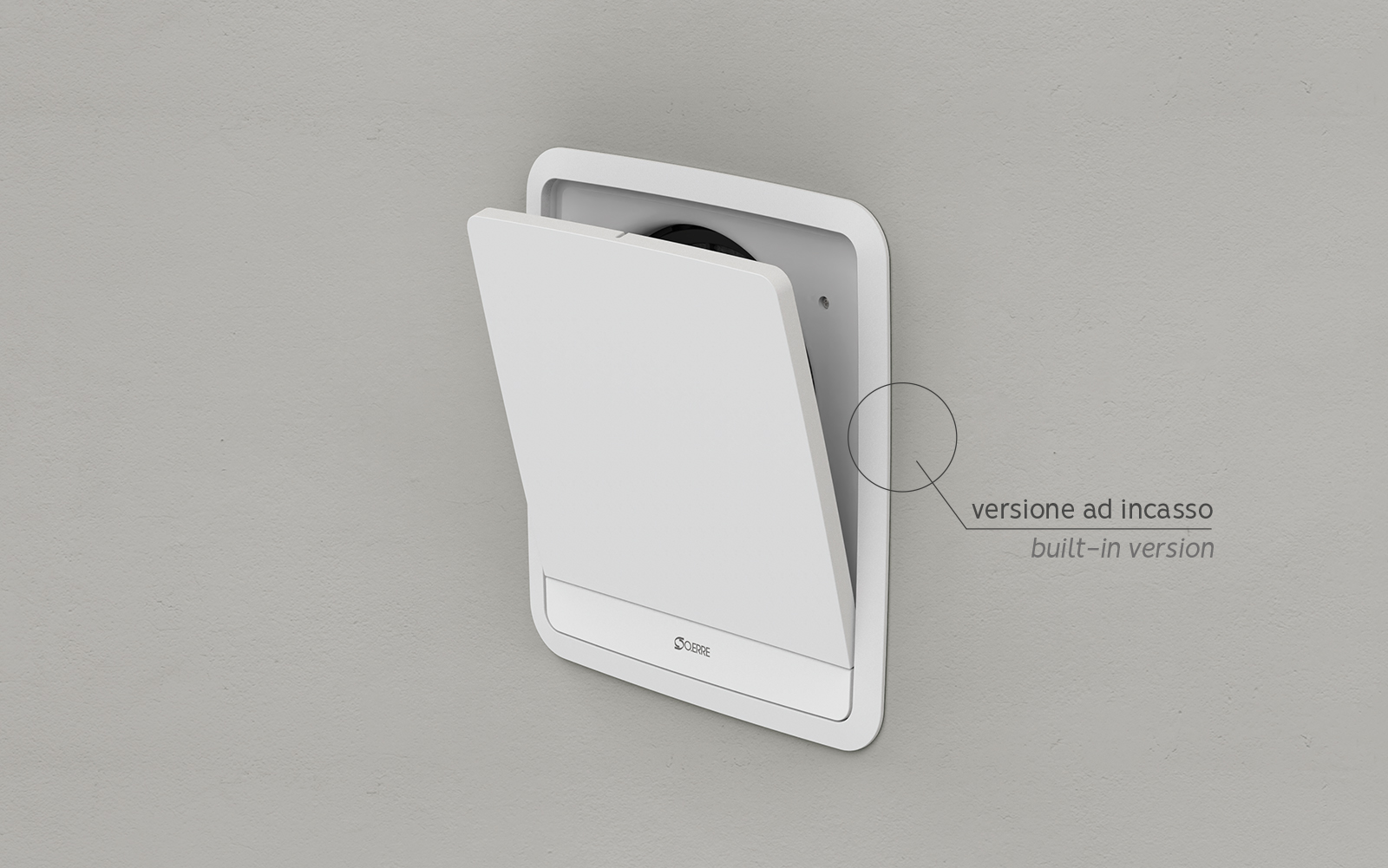

- Possibility to install the product as built-in version thanks to the Built-in Kit (available separately as an accessory);
- Turbo function that allows a flow rate of up to 90 m³/h.
- Made of long life, high quality finest materials, with elegant design.
- Frontal cover in ABS and external grille in ASA, a noble material that resists to UV rays, heat, bumps and aging, and therefore perfectly suited for outdoor use;
- Tilting opening system of the front panel to prevent ingress of air when the fan is OFF;
- External grille designed to reduce the outside noise;

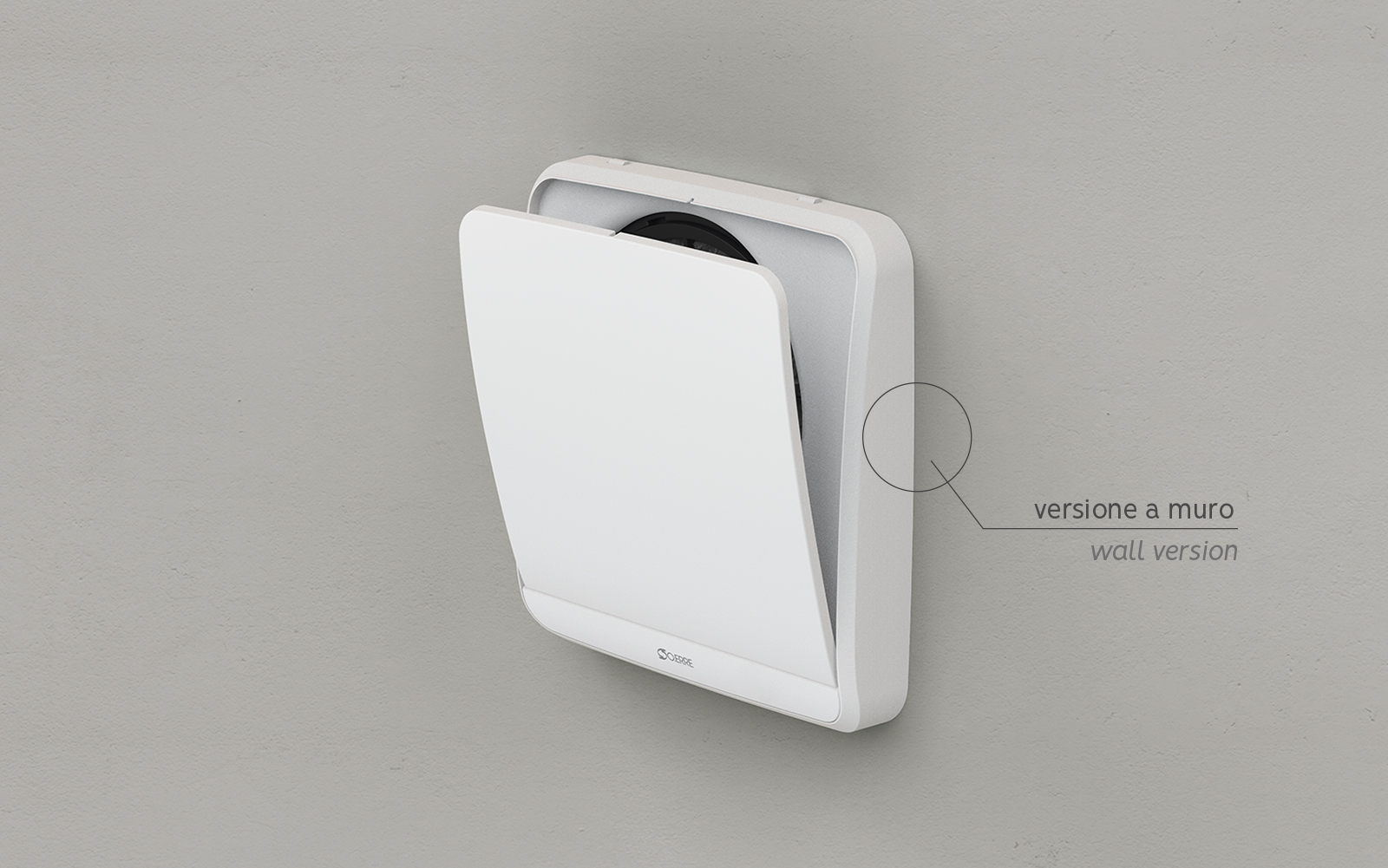

- 250 mm minimum wall depth for the wall version and 300 mm for the built-in version. 3m maximum wall depth (2.5 m in case of 90° curve).
- Standard duct lenght 500 mm. 700 mm lenght available as an accessory.
- DC ball bearing motorimpeller, brushless with electronic commutation;
- Long life and low energy consumption;
- Easy cleaning and maintenance;
- Double dust filter, washable and easy to access;
- IPX4 protection degree;
- Led indicator for functions and filter cleaning;
- Humidity and twilight sensors (active, wireless and app versions);
- The last set function is saved and automatically restored in case of interruption of the power supply;
- Caps for pipe in case of future installation in the construction site;
- No condensation drainage required;
- Working Temperature Range: - 30°C + 50°C.
- Possibility to change standard filters with optionals(only Ø160).
POSITIONING

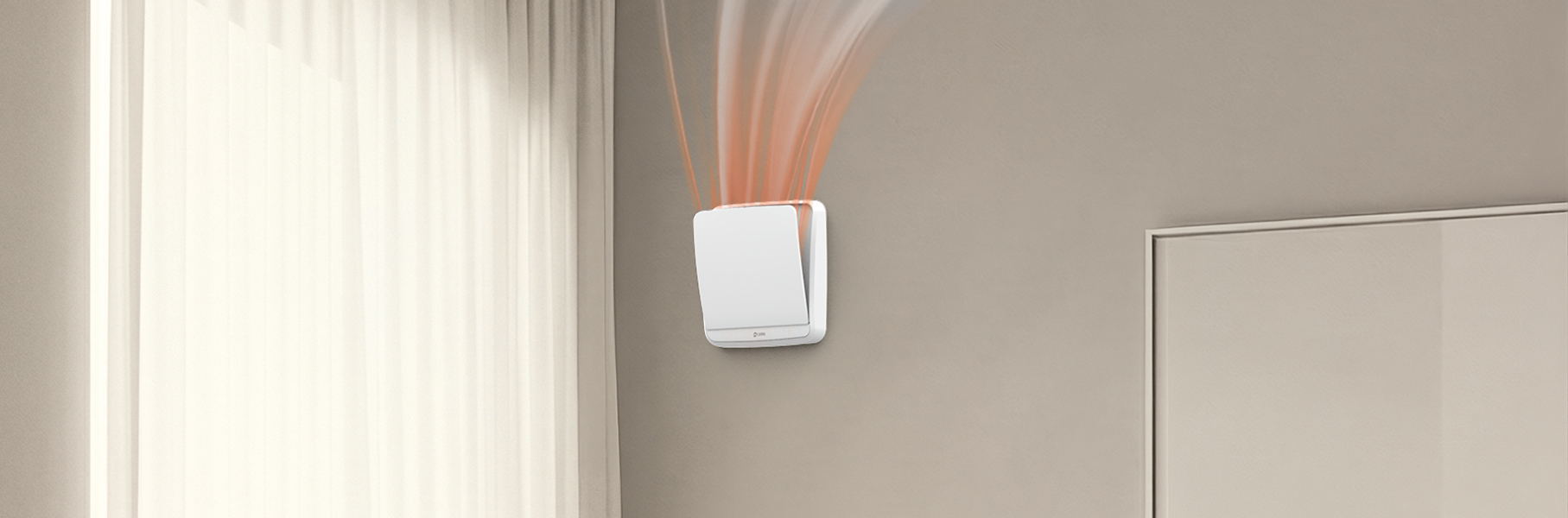

Ghost-U is designed for use in the main rooms of the home (e.g. living room, dining room, bedroom). The Base version can be installed individually, although the product’s maximum efficiency is achieved when installed in pairs. Thanks to their synchronisation technology, the Active, Wireless and App O.Tech versions allow you to install two or more units that communicate with one another.
FURTHER INFORMATION
GHOST-U available versions:
BASE main technical features:
- Remote control included (TC BASE);
- ON/OFF;
- 3 adjustable speeds.
ACTIVE version’s main technical features:
- Display remote control (accessory sold separately);
- Integrated humidity and twilight sensors which allow several automatic functioning modes (see remote control);
- Up to 16 units communicating in sequence in the same system in master/slave mode, through easy dip switches configuration;
- 4 adjustable speeds (including 1 night speed).
Wireless version’s main technical features:
- Wireless connection between the units;
- Remote control with display (accessory included in the box);
- Integrated humidity and twilight sensors which allow several automatic functioning modes (see remote control);
- Up to 16 units communicating in sequence in the same system in master/slave mode, through easy dip switches configuration;
- 4 adjustable speeds (including 1 night speed).

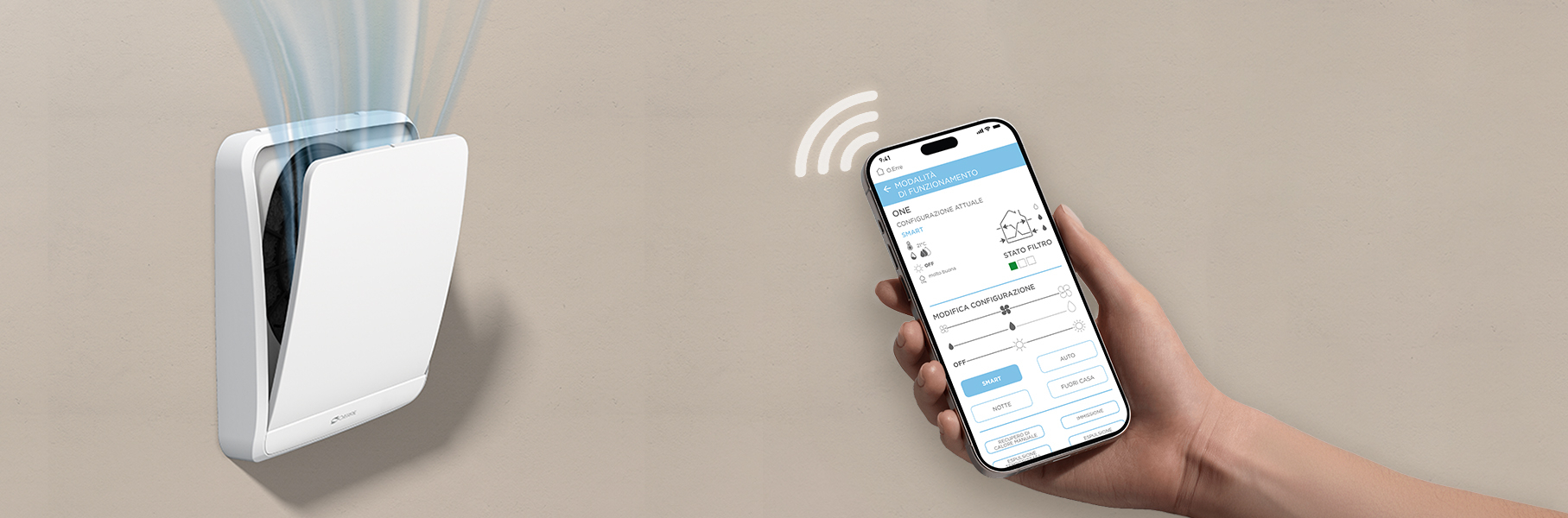

O.TECH APP version is equipped with:
- iOS and Android O.TECH App,
- Possibility to control the units via Smartphone thanks to the O.app even remotely;
- Connection to weather stations to monitor the temperature humidity and air quality parameters of the outside air;
- Integrated humidity, twilight, temperature and VOC sensors which allows several modes of automatic operation;
- SMART mode which allows the comparison of inside and outside air quality data thanks to the connection to the nearest weather station. This will allow the product to adjust automatically its functioning according to the detected parameters;
- Possibility to configure up to 16 units inside the system via APP;
- 4 adjustable speeds (including 1 night speed).

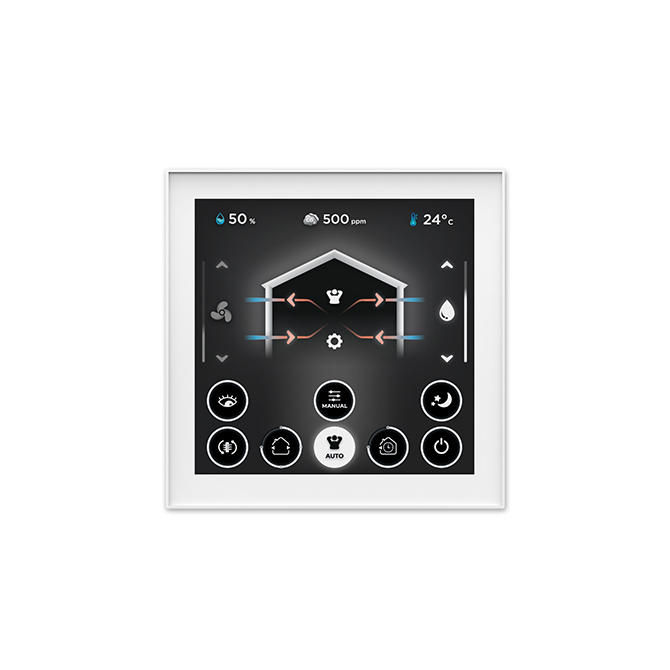

CONTROL INSTRUMENTS (NECESSARY FOR ACTIVE AND WIRELESS VERSIONS, ONE FOR EACH SYSTEM, TO RUN ALL FUNCTIONS)
OPTIONAL ACCESSORIES

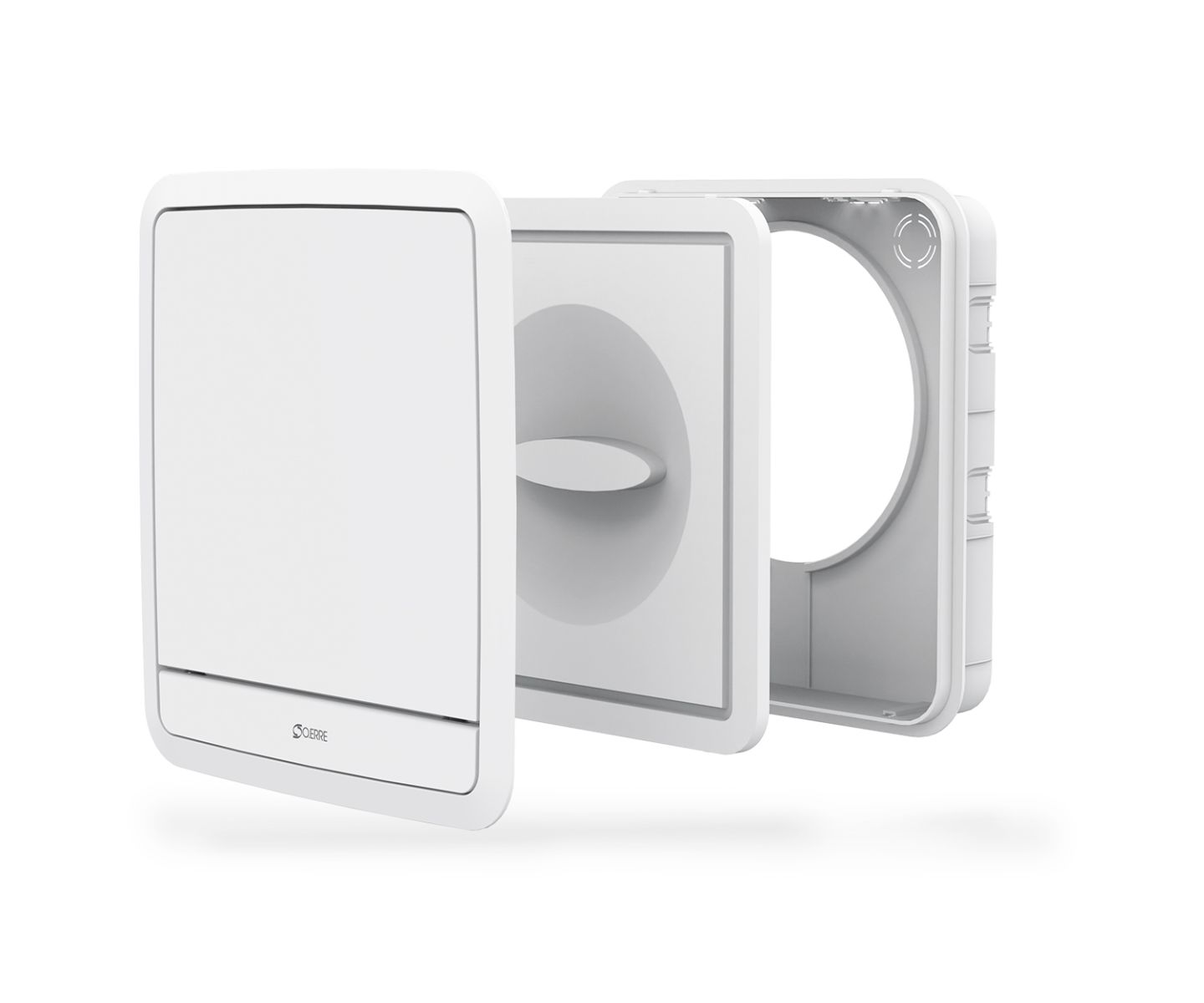

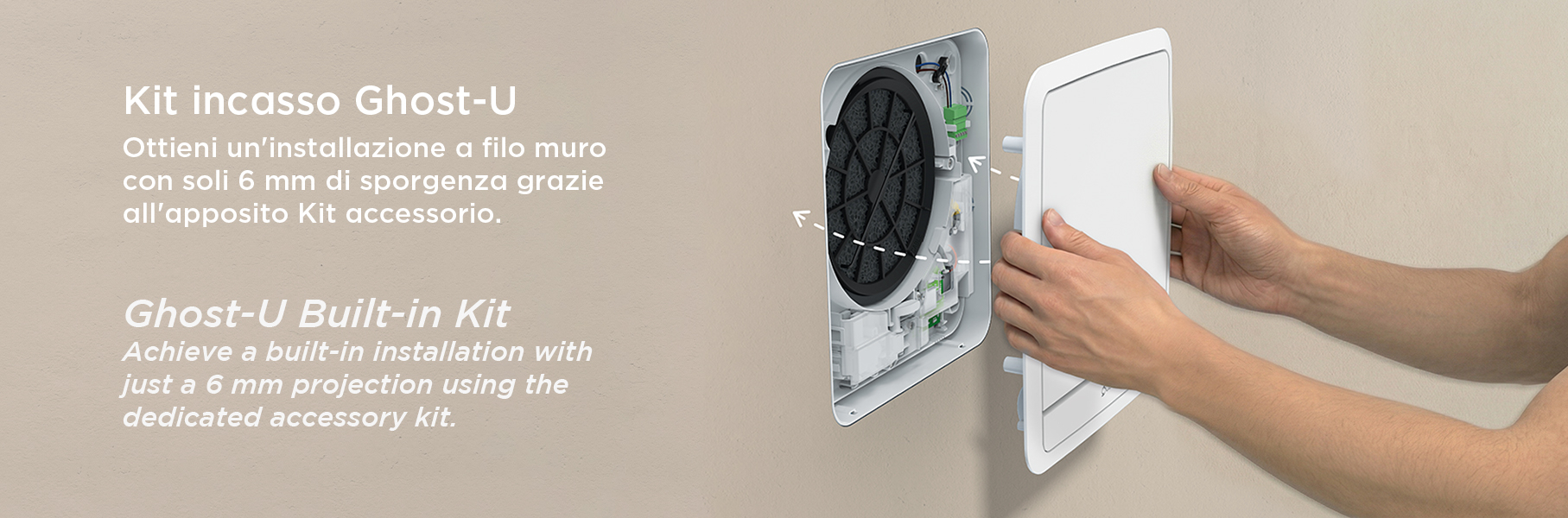

The Recessed Kit for Ghost-U, complete with formwork, cover, and Ghost-U IN aesthetic, allows for simple and quick installation. It ensures a discreet result, ideal for those seeking a design with minimal visual impact.

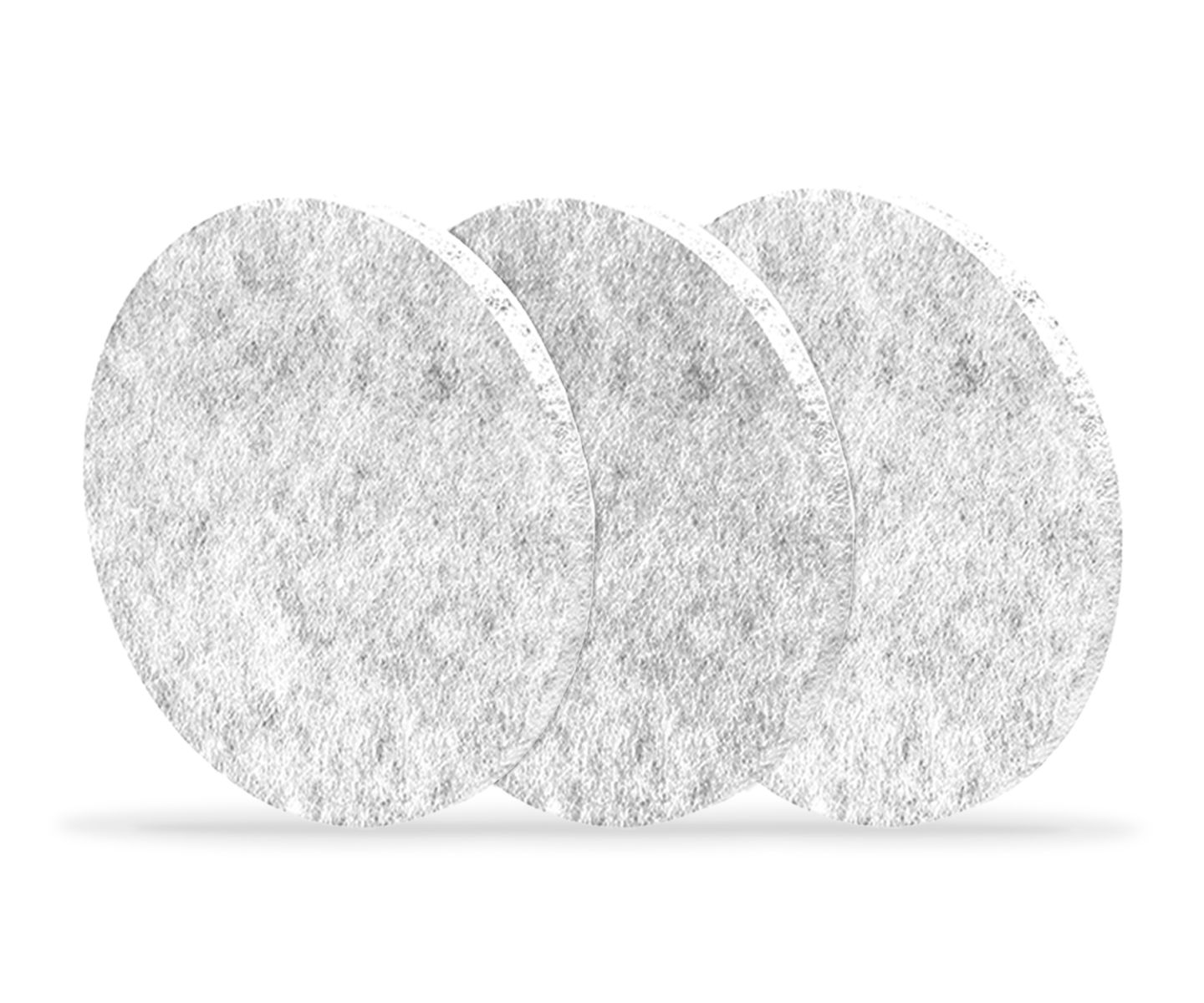

KIT FILTRI:
ISO COARSE 30% / 45% / 60% - ePM10 50%
The optional filters, compared to standard dust filter type, allow a more efficient filtration of particles with the diameter superior to 10µm (like hair, pollen, sand, generic dust).

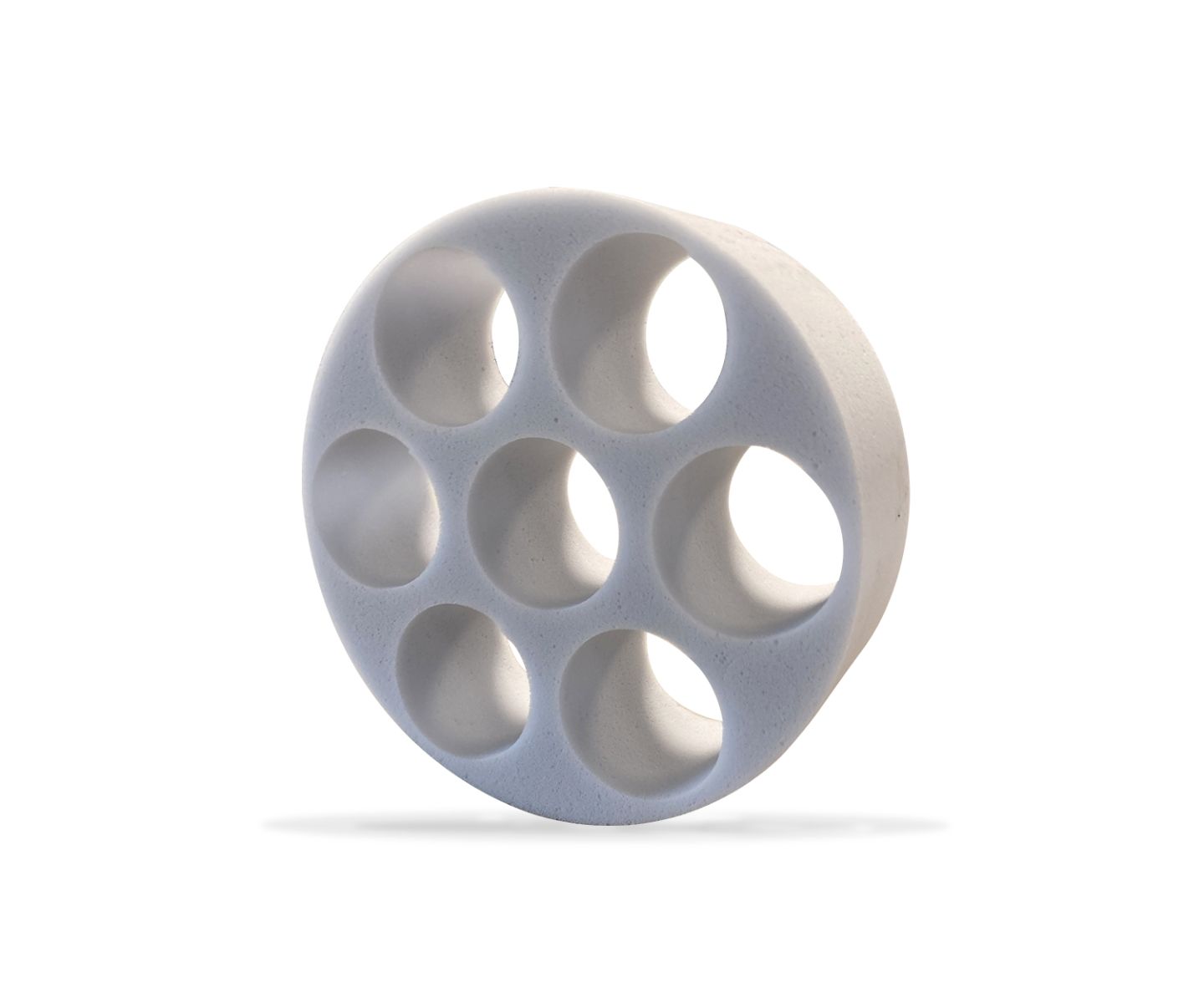

The noise damper allows to reduce the noise coming from the outside by 6 dB when the product is turned off.

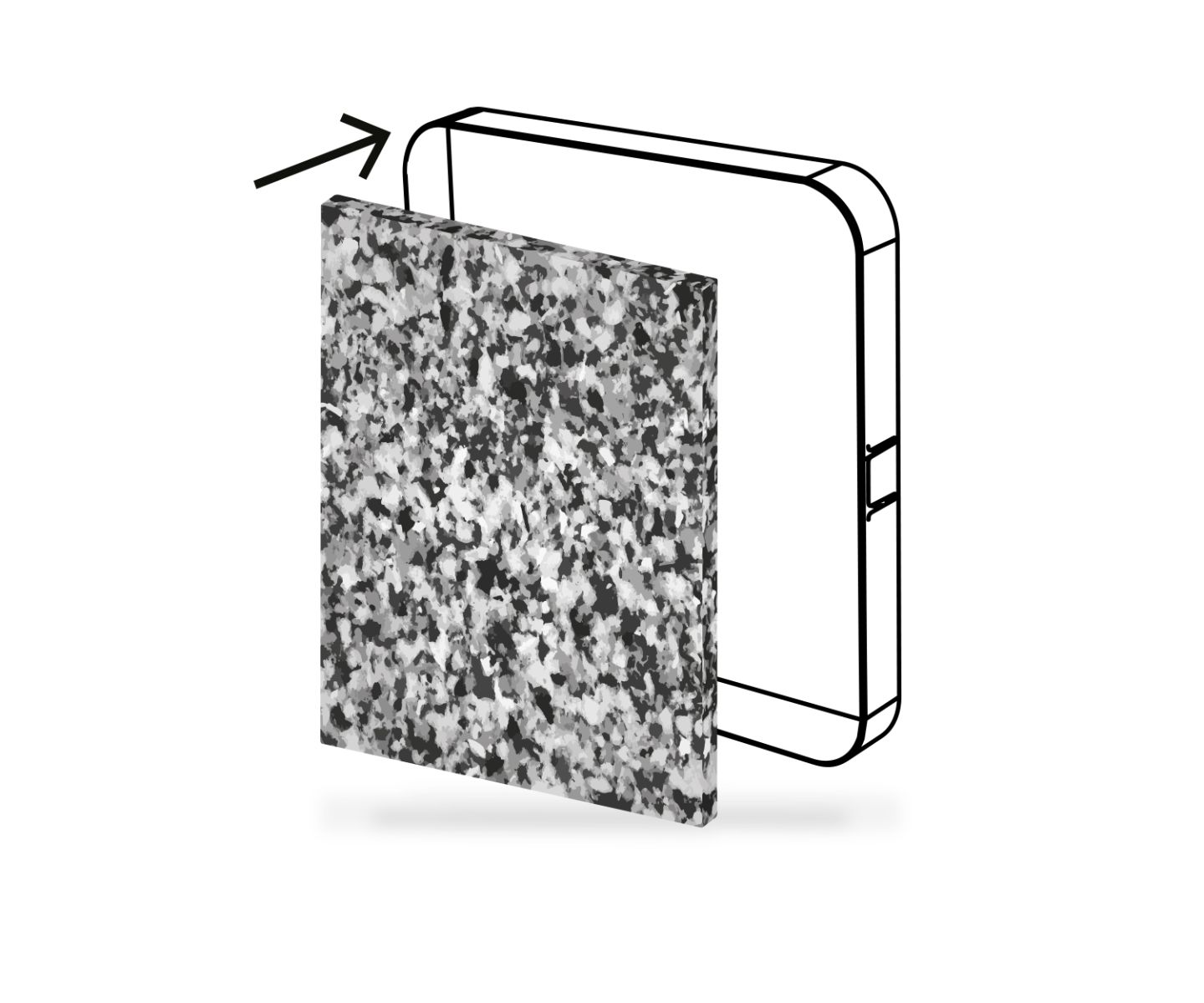

The sound-absorbing material reduces noise from outside when the product is switched off.

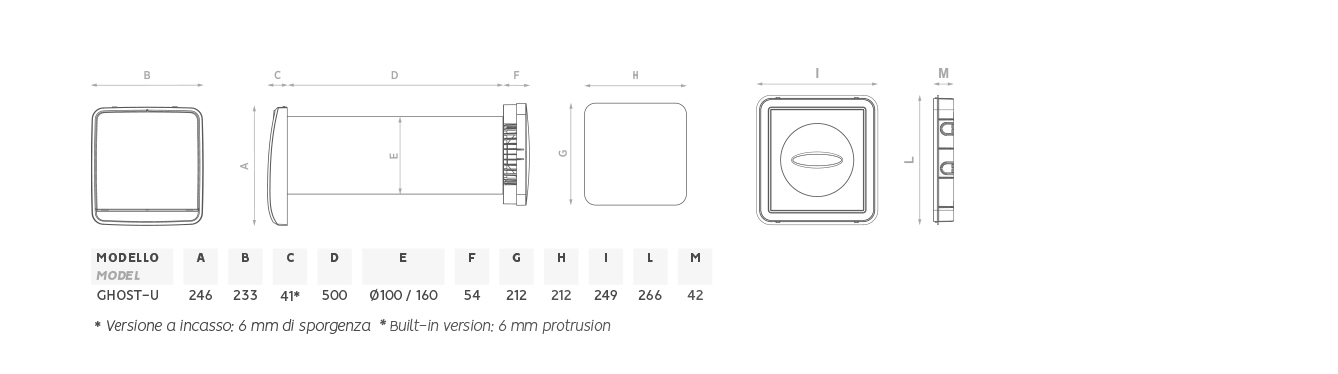

DIMENSIONS
Product versions
Slide the table to the right
| Model | Code | Ø hole (mm) | Voltage (V) | Frequency (Hz) | Flow rate (m³/h) | Max. Press. (mm H₂O) | Max. Press. (Pa) | Power (W) | Noise dB(A)3m | Weight (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| Model | Code | Ø hole (mm) | Voltage (V) | Frequency (Hz) | Flow rate (m³/h) | Max. Press. (mm H₂O) | Max. Press. (Pa) | Power (W) | Noise dB(A)3m | Weight (Kg) |
| GHOST-U 100 BASE | 0028600 | 100 | 220 - 240 | 50 | 30 | 7,3 | 72 | 6,9 | 29 | 3,5 |
| GHOST-U 100 ACTIVE | 0028610 | 100 | 220 - 240 | 50 | 30 | 7,3 | 72 | 6,9 | 29 | 3,5 |
| GHOST-U 100 WIRELESS | 0028620 | 100 | 220 - 240 | 50 | 30 | 7,3 | 72 | 6,9 | 29 | 3,5 |
| GHOST-U 100 APP O.TECH | 0028630 | 100 | 220 - 240 | 50 | 30 | 7,3 | 72 | 6,9 | 29 | 3,5 |
| GHOST-U 160 BASE | 0028700 | 160 | 220 - 240 | 50 | 60 | 5,5 | 54 | 6,5 | 25 | 5 |
| GHOST-U 160 ACTIVE | 0028710 | 160 | 220 - 240 | 50 | 60 | 5,5 | 54 | 6,5 | 25 | 5 |
| GHOST-U 160 WIRELESS | 0028720 | 160 | 220 - 240 | 50 | 60 | 5,5 | 54 | 6,5 | 25 | 5 |
| GHOST-U 160 APP O.TECH | 0028730 | 160 | 220 - 240 | 50 | 60 | 5,5 | 54 | 6,5 | 25 | 5 |
