FLUXAir recirculator with CO2 control
FEATURES
- Mixing Fan with CO2 control suitable for indoor;
- Ideal for single room applications civil and public environments;
- Very silent;
- Long life, DC ball bearing motor, low consumption;
- Easy cleaning and maintenance oprations;
- For ducts Ø160 mm or Ø170 mm;
- Adjustable duct from 70 mm to 250 mm;
- Alarms indicators;
- Function mode adjustable through DIP SWITCHES;
- POSITIONING: wall mounting
WHY TO USE
A mechanical controlled ventilation system is the best efficient solution to grant a correct and proper ventilation in homes and business premises.
The common practice to extract and blow air in the premises is through ducts that in case of renovations become an awkward and costly solution.
FLUX has been designed to replace ducting ensuring a constant air exchange in the premises whilst minimizing the costs and time for the installation and the maintenance.
HOW IT WORKS
FLUX is an axial fan equipped with CO2 sensor to control the level of carbon dioxide in the environment, the main function is to ensure a proper ventilation in the premises.

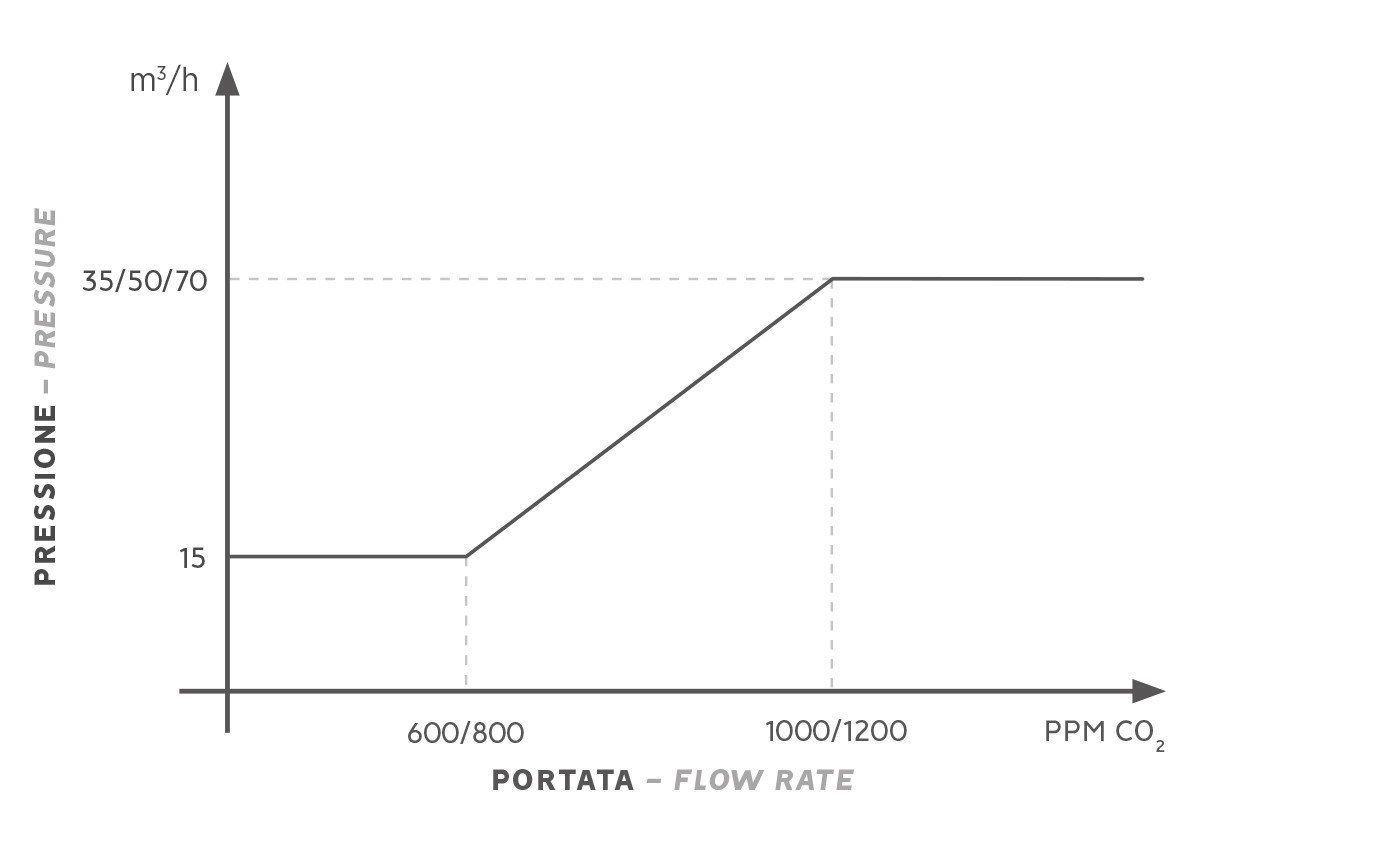

Thanks to the sensor fitted to the fan unit, the product automatically adjusts its airflow based on the amount of CO2 detected in the room. These parameters can be set through suitable DIP SWITCHES directly on the unit:
- PPM minumum threshold: to be set at 600 or 800 PPM
- PPM maximum threshold: to be set at 1000 or 1200 PPM
- Max airflow: to be set at 35, 50 or 70 m3/h
APPLICATIONS
Where already existing a ducting system for extraction of stale and dirty air coming from bathrooms and kitchens.
To ensure a proper ventilation with maximum efficiency in all premises a centralized mechanical ventilation unit combined to a flux system is the optimal solution. In this way for air extraction, the existing ducting would be enough, while the FLUX system will convey the fresh air, i.e. blown into stairwell, into the noble premises of the house. The great advantage is that the system doesn’t need ducting for air blowing whilst avoiding the cost for installation.
Premises without ducsts for air extraction.
The quickest and cheapest way to ensure a proper ventilation and maximum efficiency, starting from zero, can be achived by installing a decentralized mechanical ventilation unit in one room, i.e. living room and through a FLUX system, transfer the fresh air to all the other rooms without the use of ducting.
Long corridors in hotel facilities.
The product is also suitable in hotels where many rooms look out on the corridor. In this case, a proper ventilation must be ensured in the corridor and the FLUX system will bring the fresh air into the rooms.

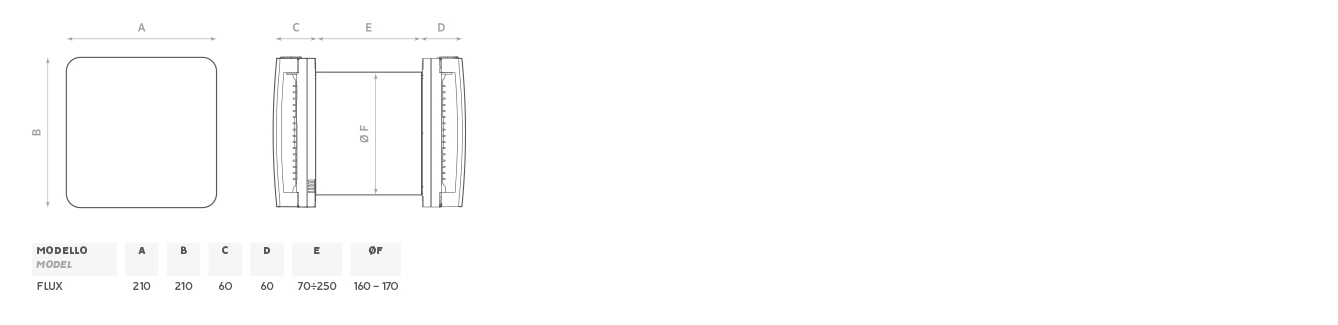

DIMENSIONS
Product versions
Slide the table to the right
| Model | Code | Ø hole (mm) | Voltage (V) | Frequency (Hz) | Flow rate (m³/h) | Power (W) | Noise dB(A)3m |
|---|---|---|---|---|---|---|---|
| Model | Code | Ø hole (mm) | Voltage (V) | Frequency (Hz) | Flow rate (m³/h) | Power (W) | Noise dB(A)3m |
| FLUX | 0011700 | 160/170 | 220 - 240 | 50 - 60 | 70 | 3,5 | 35 |
