MULTI+Axial fan suitable for ducts Ø80-90-100-120
FEATURES
- Operation indicator light
- “Snap” assembly grid.
- Two fixing screws and click assembly of the grille for an easy installation.

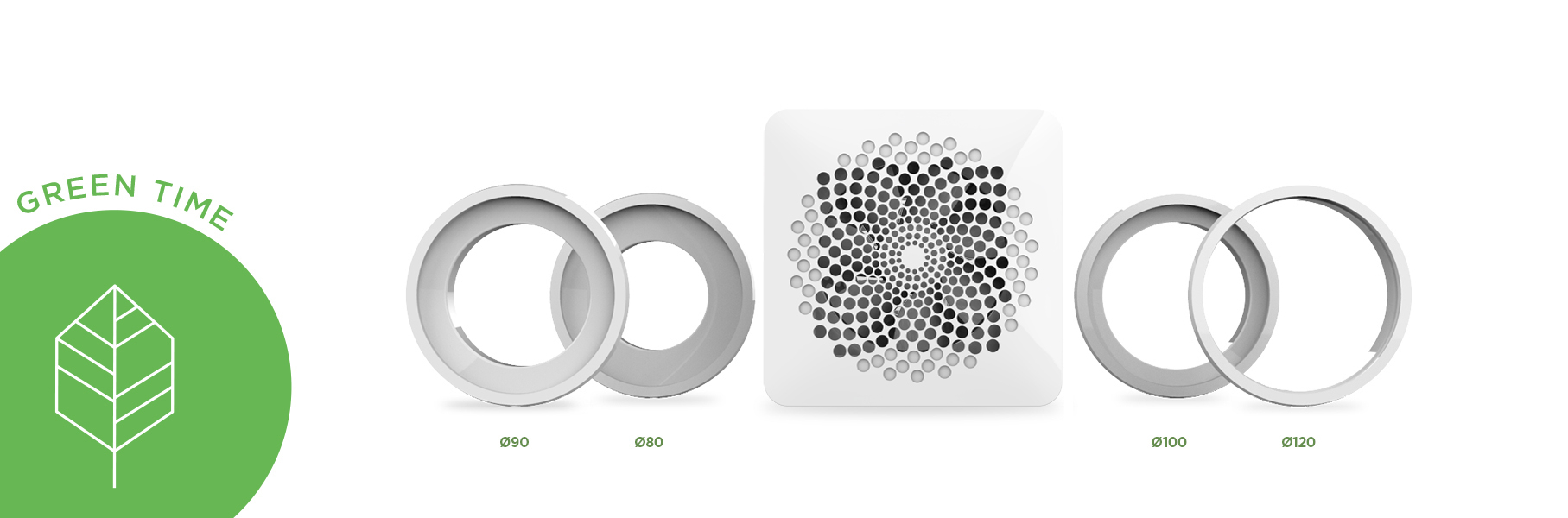

- Suitable for ducts Ø80-90-100-120 thank to the four interchangeable back conveyor.
- Made of ABS anti-UV.
- Ball bearing DC motor, for a long life and a low power consumption.
- Versions: Base, Timer.
- IPX4 protected.
- 45°C working temperature.
- Glass kit (optional)
POSITIONING
- Wall mounting
- Ceiling mounting
- Glass installation with optional kit
FURTHER INFORMATION
MULTI+ is an axial fan which is perfect for extracting air or exhalations from all environments.
MAXIMUM VERSATILITY
MULTI+ is the most versatile product of the family thanks to its compatibility with holes of four different diameters: 80 cm, 90 cm, 100 cm and 120 cm.
FAST INSTALLATION
MULTI+ can be installed in just a few minutes using only two fixing screws.
ENERGY SAVING
Thanks to its new electronic brushless motor, MULTI+ guarantees a reduction in average energy consumption of 70% compared to a conventional motor.
AVAILABLE VERSIONS
BASE
ON/OFF version.
T (ELECTRONIC TIMER)
The product has a switch-off delay which can be selected among 2 and 25 minutes via simple trimmer.
HT (HUMIDISTAT AND ELECTRONIC TIMER)
The product has a humidity sensor which allows the machine to automatically activate itself when the thresholds is exceeded (from 40% to 90%) and switch-off delay which can be selected among 2 and 25 minutes via simple trimmers.
DIMENSIONS
Flow charts
Product versions
Slide the table to the right
| Model | Code | Ø hole (mm) | Voltage (V) | Frequency (Hz) | Max Flow rate (m³/h) | Min Flow rate (m³/h) | Max. Press. (mm H₂O) | Max. Press. (Pa) | Max power (W) | Min power (W) | Noise dB(A)3m | Weight (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Code | Ø hole (mm) | Voltage (V) | Frequency (Hz) | Max Flow rate (m³/h) | Min Flow rate (m³/h) | Max. Press. (mm H₂O) | Max. Press. (Pa) | Max power (W) | Min power (W) | Noise dB(A)3m | Weight (Kg) |
| MULTI+ | 0057900 | 80-90-100-120 | 220-240 | 50-60 | 175 | 50 | 5,2 | 51 | 6,9 | 4,9 | 33 | 0,7 |
| MULTI+ T | 0057901 | 80-90-100-120 | 220-240 | 50-60 | 175 | 50 | 5,2 | 51 | 6,9 | 4,9 | 33 | 0,7 |
| MULTI+ HT | 0057902 | 80-90-100-120 | 220-240 | 50-60 | 175 | 50 | 5,2 | 51 | 6,9 | 4,9 | 33 | 0,7 |
