CV-T HTVentilatore per fumi d'incendio e autorimesse
CARATTERISTICHE
- Temperatura max aria aspirata: 200°C in servizio continuo, 400°C per 2 ore in caso di incendio.
- Gamma composta da 6 taglie, con portate d’aria da 1500 a 35000 m3/h e pressioni statiche da 10 a 180 mm H2O.
- Girante a pale avanti, doppia aspirazione.
Serie di ventilatori cassonati centrifughi a doppia aspirazione a trasmissione progettati per utilizzo in impianti di aspirazione fumi industriali o per evacuazione fumi in caso d’incendio secondo la classificazione F400.
- Cassone in lamiera zincata.
- I motori sono della serie UNEL MEC IP 55 classe F a singola o doppia velocità su richiesta.
- Omologato F400 da Ente Qualificato Autonomo.
- Conforme alla norma UNI-EN 12101-3.
POSIZIONAMENTO
- A pavimento
AMBITI APPLICATIVI
Adatti per impianti di evacuazione fumi in caso d’incendio in:
- Centri commerciali.
- Parcheggi interrati.
- Ospedali.
- Impianti di estrazione fumi in caso d’incendio nel settore residenziale, commerciale e terziario.
DIMENSIONI

Dati tecnici
scorri la tabella verso destra
Modello | Codice | Tensione (V) | Frequenza (Hz) | Portata (m³/h) | Press. Max. (mm H₂O) | Press. Max. (Pa) | Rumorosità dB(A)3m | Giri al minuto (RPM) | Peso (Kg) | Motore | N° poli | Potenza (kW) | Corrente Nominale (A) 230 V | Corrente Nominale (A) 400 V | Grado IP del motore |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Modello | Codice | Tensione (V) | Frequenza (Hz) | Portata (m³/h) | Press. Max. (mm H₂O) | Press. Max. (Pa) | Rumorosità dB(A)3m | Giri al minuto (RPM) | Peso (Kg) | Motore | N° poli | Potenza (kW) | Corrente Nominale (A) 230 V | Corrente Nominale (A) 400 V | Grado IP del motore |
CV-T HT 250-2,2 | 0012601 | 400 | 50 | 5700 | 75 | 736 | 70 | 1800 | 85 | Trifase | 4 | 2,2 | 8,1 | 4,7 | IP55 |
CV-T HT 250-1,5 | 0012603 | 400 | 50 | 5100 | 60 | 589 | 68 | 1600 | 75 | Trifase | 4 | 1,5 | 5,6 | 3,2 | IP55 |
CV-T HT 250-1,1 | 0012605 | 400 | 50 | 4400 | 45 | 441 | 65 | 1400 | 75 | Trifase | 4 | 1,1 | 4,2 | 2,4 | IP55 |
CV-T HT 250-0,75 | 0012607 | 400 | 50 | 3700 | 32 | 314 | 61 | 1200 | 70 | Trifase | 4 | 0,75 | 3,1 | 1,8 | IP55 |
CV-T HT 250-0,37 | 0012609 | 400 | 50 | 3100 | 23 | 226 | 57 | 1000 | 68 | Trifase | 4 | 0,37 | 1,8 | 1,1 | IP55 |

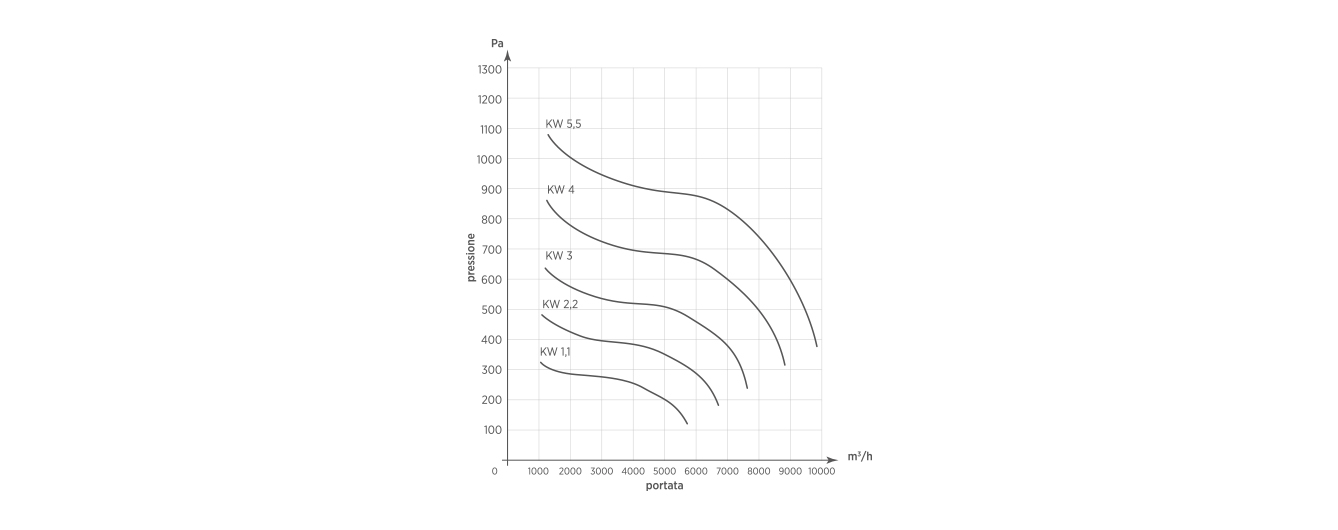

CV-T HT 300-5,5 | 0012611 | 400 | 50 | 9700 | 110 | 1079 | 76 | 1800 | 130 | Trifase | 4 | 5,5 | 18,9 | 10,9 | IP55 |
CV-T HT 300-4 | 0012613 | 400 | 50 | 8800 | 88 | 863 | 73 | 1600 | 120 | Trifase | 4 | 4 | 13,6 | 7,9 | IP55 |
CV-T HT 300-3 | 0012615 | 400 | 50 | 7700 | 66 | 647 | 71 | 1400 | 110 | Trifase | 4 | 3 | 11 | 6,4 | IP55 |
CV-T HT 300-2,2 | 0012617 | 400 | 50 | 6700 | 47 | 461 | 67 | 1200 | 110 | Trifase | 4 | 2,2 | 8,1 | 4,7 | IP55 |
CV-T HT 300-1,1 | 0012619 | 400 | 50 | 5600 | 33 | 324 | 63 | 1000 | 100 | Trifase | 4 | 1,1 | 4,2 | 2,4 | IP55 |

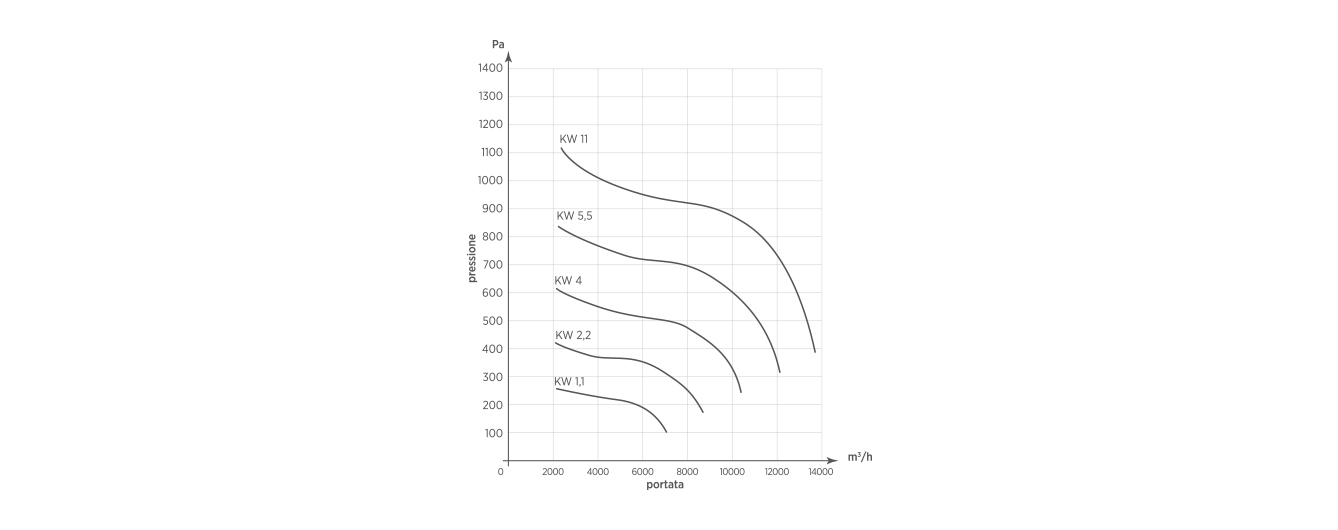

CV-T HT 350-11 | 0012621 | 400 | 50 | 13300 | 112 | 1099 | 78 | 1600 | 250 | Trifase | 4 | 11 | 36 | 20,8 | IP55 |
CV-T HT 350-5,5 | 0012623 | 400 | 50 | 12000 | 85 | 834 | 75 | 1400 | 180 | Trifase | 4 | 5,5 | 18,9 | 10,9 | IP55 |
CV-T HT 350-4 | 0012625 | 400 | 50 | 10500 | 63 | 618 | 72 | 1200 | 170 | Trifase | 4 | 4 | 13,6 | 7,9 | IP55 |
CV-T HT 350-2,2 | 0012627 | 400 | 50 | 8500 | 44 | 432 | 68 | 1000 | 160 | Trifase | 4 | 2,2 | 8,1 | 4,7 | IP55 |
CV-T HT 350-1,1 | 0012629 | 400 | 50 | 6400 | 27 | 265 | 63 | 800 | 150 | Trifase | 4 | 1,1 | 4,2 | 2,4 | IP55 |
CV-T HT 400-11 | 0012631 | 400 | 50 | 18200 | 118 | 1158 | 78 | 1400 | 310 | Trifase | 4 | 11 | 36 | 20,8 | IP55 |
CV-T HT 400-7,5 | 0012633 | 400 | 50 | 16000 | 83 | 814 | 76 | 1200 | 300 | Trifase | 4 | 7,5 | 25,4 | 14,7 | IP55 |
CV-T HT 400-4 | 0012635 | 400 | 50 | 13000 | 58 | 569 | 72 | 1000 | 220 | Trifase | 4 | 4 | 13,6 | 7,9 | IP55 |
CV-T HT 400-2,2 | 0012637 | 400 | 50 | 10200 | 37 | 363 | 67 | 800 | 210 | Trifase | 4 | 2,2 | 8,1 | 4,7 | IP55 |
CV-T HT 450-22 | 0012639 | 400 | 50 | 25500 | 150 | 1472 | 78 | 1400 | 520 | Trifase | 4 | 22 | 69,7 | 40,3 | IP55 |
CV-T HT 450-15 | 0012641 | 400 | 50 | 22000 | 112 | 1099 | 76 | 1200 | 440 | Trifase | 4 | 15 | 48,1 | 27,8 | IP55 |
CV-T HT 450-7,5 | 0012643 | 400 | 50 | 18000 | 78 | 765 | 72 | 1000 | 360 | Trifase | 4 | 7,5 | 25,4 | 14,7 | IP55 |
CV-THT 450-4 | 0012645 | 400 | 50 | 14800 | 50 | 491 | 67 | 800 | 270 | Trifase | 4 | 4 | 13,6 | 7,9 | IP55 |
CV-T HT 450-1,5 | 0012647 | 400 | 50 | 11100 | 28 | 275 | 64 | 600 | 250 | Trifase | 4 | 1,5 | 5,6 | 3,2 | IP55 |
CV-T HT 500-30 | 0012649 | 400 | 50 | 35000 | 180 | 1766 | 86 | 1400 | 610 | Trifase | 4 | 30 | 94,5 | 54,6 | IP55 |
CV-T HT 500-22 | 0012651 | 400 | 50 | 3000 | 135 | 1324 | 82 | 1200 | 580 | Trifase | 4 | 22 | 69,7 | 40,3 | IP55 |
CV-T HT 500-18 | 0012653 | 400 | 50 | 25000 | 90 | 883 | 78 | 1000 | 500 | Trifase | 4 | 15 | 48,1 | 27,8 | IP55 |
CV-T HT 500-7,5 | 0012655 | 400 | 50 | 20000 | 60 | 589 | 74 | 800 | 420 | Trifase | 4 | 7,5 | 25,4 | 14,7 | IP55 |
CV-T HT 500-3 | 0012657 | 400 | 50 | 15100 | 32 | 314 | 68 | 600 | 310 | Trifase | 4 | 3 | 11 | 6,4 | IP55 |
